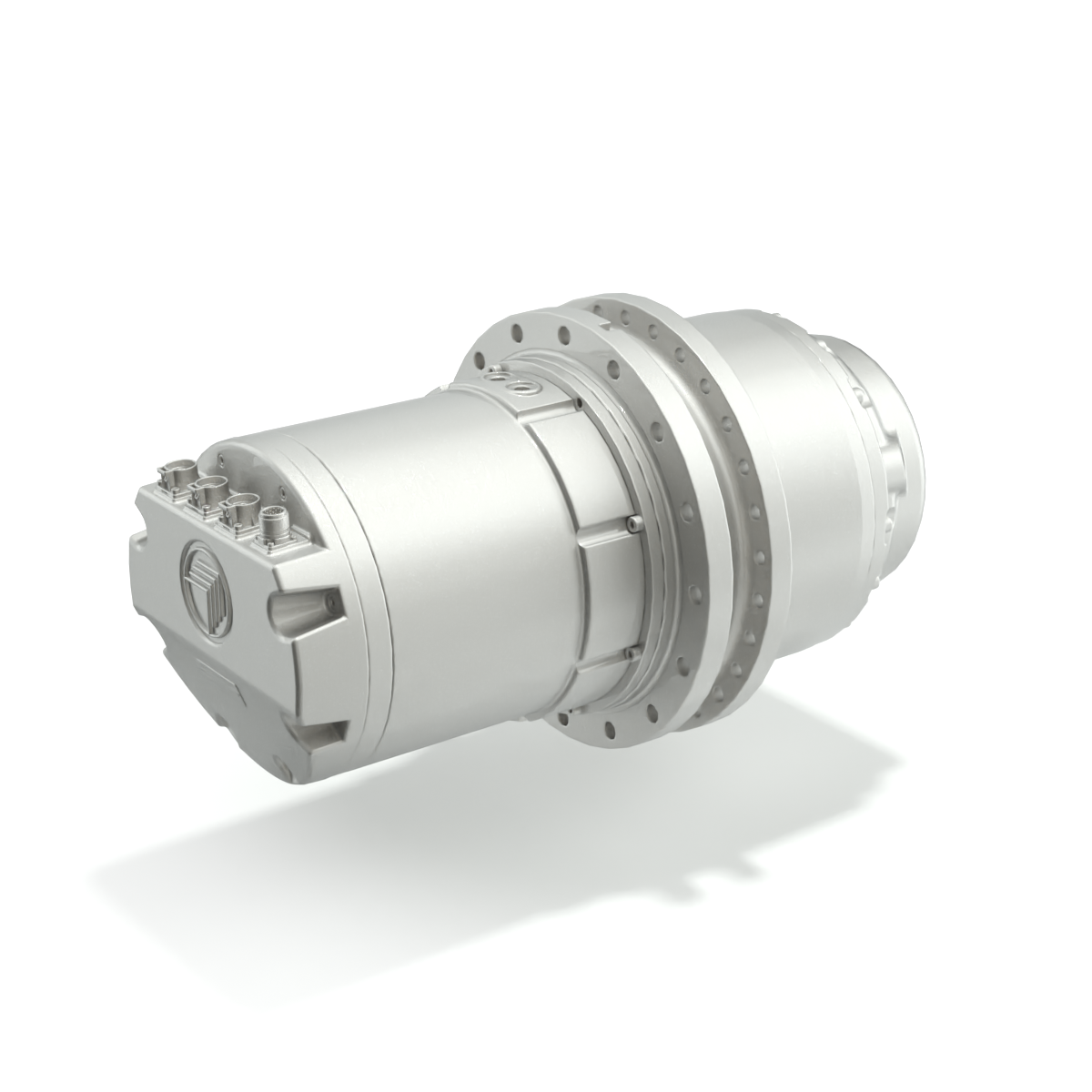

700 CE SERIES - Electric

Bonfiglioli 700CE planetary drives coupled with a high-power density electric motor are specifically designed for high-voltage hybrid powertrain systems. Many years of installation on crusher machines is concrete proof of the efficiency of these electric drive solutions. An integrated, maintenance-free IPM (internal permanent magnet) electric motor is included, giving significant benefits in terms of dimensions and efficiency. The motor design is flexible from a cooling type standpoint: 700CE series drives coupled with air-cooled motors are designed to be installed on all kinds of crushers and screeners, weighting up 60 tons and with a max. speed of 3.5 to 4.0 km/h. Because they use the same motor with liquid cooling, some of these solutions can also be applied to other types of new-generation off-highway tracked machinery in the construction industry. For outdoor use on rough soils, the motor protection class is IP67. The overall length of the SAHR brake, is particularly limited, close to the size of a hydraulic motor.

Specifications

Torque range
26.000 ... 60.000 Nm 1.200 ... 9.000 Nm
Stall Torque Range
Type Torque (Nm)
700CE 1200
700-2TE 1900
701CE 2500
702CE 3500
704CE 5000
705CE 9000
707CE 26000
709CE 30000
710CE 36000
711CE 45000
713CE 60000
Torque range
26.000 ... 60.000 Nm
1.200 ... 9.000 Nm
Gear ratios
123 ... 350
Input speed
up to 6,000 rpm

Specifications

Benefits for OEMs
  • Ability to downsize and downspeed combustion engines
  • Ease of installation: electric solution dimensions comparable to standard hydrostatics
  • Higher system reliability: fewer mechanical parts
  • Virtually maintenance-free electric motors
  • From sprocket to electric wire with only one supplier
Benefits for the end-user
  • Reduced fuel consumption
  • Increased productivity
  • Better machine maneuverability
  • The electric solution is cleaner: lower risk of oil spills
Rated voltage DC BUS: 400 V
Rated motor power: 24.4 kW S1
Maximum motor torque: 400 Nm [255 A] (up to 1200 rpm)
Motor speed: Up to 6000 rpm
Protection class: IP 67
Ins. Class: H
Max. output torque: Up to 60 000 Nm

Applications

Mini-excavators

Electric and hydraulic solutions available

Slew and travel drives for mini excavators are fundamental to guarantee high performance, efficiency, and reliability in the field. Bonfiglioli stands out for continuous innovation in processes and materials, offering cutting-edge solutions to meet the needs of both manufacturers and operators.  Bonfiglioli's travel drives for 1 to 6-ton mini excavators are designed to offer the best possible choice in both hydraulic and electric versions. Thanks to maximum reliability and high performance, they allow smooth machine operation even under the most demanding conditions. The range of travel drives boasts extraordinary compactness and high torque in a reduced footprint, ensuring greater efficiency without compromising the machine's dimensions.  Regarding slew drives, Bonfiglioli is committed to ensuring maximum efficiency and easy maintenance for mini excavators. The compactness and efficiency of these drives ensure optimal machine operation, enabling operators to maximize field productivity. Thanks to the use of innovative materials and advanced manufacturing processes, Bonfiglioli slew drives deliver reliable and long-lasting performance over time, minimizing downtime and ensuring constant uptime.

Furthermore, Bonfiglioli stands out for the integration of permanent magnet motors with SAE interfaces into its electric powertrain systems. This innovative solution makes it possible to electrify mini excavators to improve efficiency, reduce CO2 emissions, and lower noise levels. Permanent magnet motors offer high torque density, enabling greater power in confined spaces and a more flexible space distribution compared to traditional hydrostatic transmissions.  In conclusion, Bonfiglioli's travel and slew drives for mini excavators offer uncompromising reliability and efficiency performance.

Crusher & Screener

Electric and hydraulic solutions available

Thanks to a series of highly reliable products for crushing machinery, Bonfiglioli offers manufacturers the best possible choice.
Our travel drives are made with high-quality materials and cutting-edge technologies. Our product range offers a wide selection to meet the specific needs of crushers used in the earthmoving sector. Thanks to their reliability and robustness, our drives allow the machines to operate smoothly even in the most demanding contexts, extending their service life.
Moving on to conveyor belts, we know how important it is to maintain a constant flow of materials during crushing and screening operations. Our drives are designed to withstand the most extreme conditions and ensure efficient and reliable transport of the materials to be crushed or screened. By utilizing high-quality materials and advanced construction technologies, our products are capable of handling heavy loads while maintaining smooth and seamless operation.

Track drives

Electric and hydraulic solutions available

Thanks to a range of products designed for maximum reliability, Bonfiglioli offers crushing machine manufacturers the best possible choice in travel drive gearboxes. Our product range delivers high performance and torque in a compact design, providing solutions that ensure smooth and reliable machine operation over time.

Track drives

Electric and hydraulic solutions available

Bonfiglioli’s product range includes a wide selection of travel drives designed to ensure the smoothest possible operation of pavers of any size. The units are available with a fail-safe parking brake and can be equipped with a hydraulic motor featuring either fixed or variable displacement.

Primary Shredding

Totally integrated machine design and performance are the key feature of our planetary products for primary...
