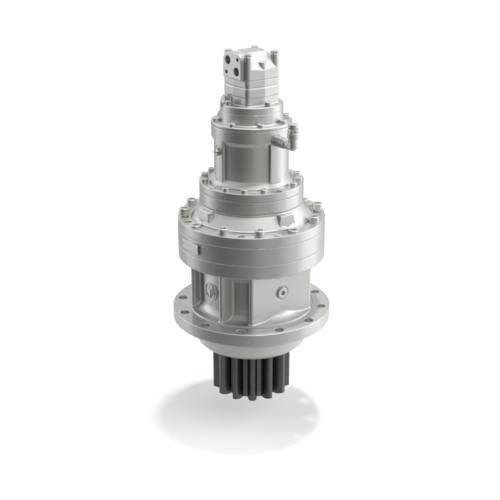

700T Series
The Bonfiglioli 700T series provides the safest, most effective solution for cranes, excavators and forestry machines. Highly appreciated by all major manufacturers, the 700T Series has long been established in the crane, excavator and special equipment industries.
key features
Flange mounted
Output shaft: splined or with Integral pinion
Rugged construction
High torque capacity
Output shafts supported by heavy-duty capacity bearings
Specifications
Torque range
8.850 … 708.059 in-lb
Stall Torque Range
Graphic description
| Type - Excavators | Torque (Nm) |
|---|---|
| 700T | 1000 |
| 701T | 1200 |
| 703T | 2500 |
| 704T | 3600 |
| 705T | 5000 |
| 706T | 7500 |
| 707T | 9000 |
| 709T | 12000 |
| 710T | 18000 |
| 7111T | 20000 |
| 712T | 30000 |
| 713T | 40000 |
| 714T | 50000 |
| 715T | 70000 |
Graphic description
| Type - Cranes | Torque (Nm) |
|---|---|
| 700T | 1200 |
| 701T | 2400 |
| 703T | 3500 |
| 704T | 4800 |
| 705T | 6500 |
| 706T | 10000 |
| 707T | 15000 |
| 709T | 20000 |
| 710T | 30000 |
| 711T | 35000 |
| 712T | 45000 |
| 713T | 55000 |
| 714T | 65000 |
| 715T | 80000 |
Gear ratios
3.48 ... 2.000
Motor options
Pressure relief valve
Overcenter valve
Overcenter valve
Specifications
Torque range
1.000 ... 80.000 Nm
1.000 ... 20.000 Nm Rough terrain cranes, Truck-mounted cranes, Crawler cranes, Drilling machines
1.200 ... 80.000 Nm Building cranes
1.000 ... 20.000 Nm Rough terrain cranes, Truck-mounted cranes, Crawler cranes, Drilling machines
1.200 ... 80.000 Nm Building cranes
Brake options
Hydraulic brake
Hydraulically released parking brake on request
Electric brake
DC and AC type
Hydraulically released parking brake on request
Electric brake
DC and AC type
Applicable motors
Piston hydraulic motors
Hydraulic orbit motors
Electric motors IEC
Hydraulic orbit motors
Electric motors IEC
