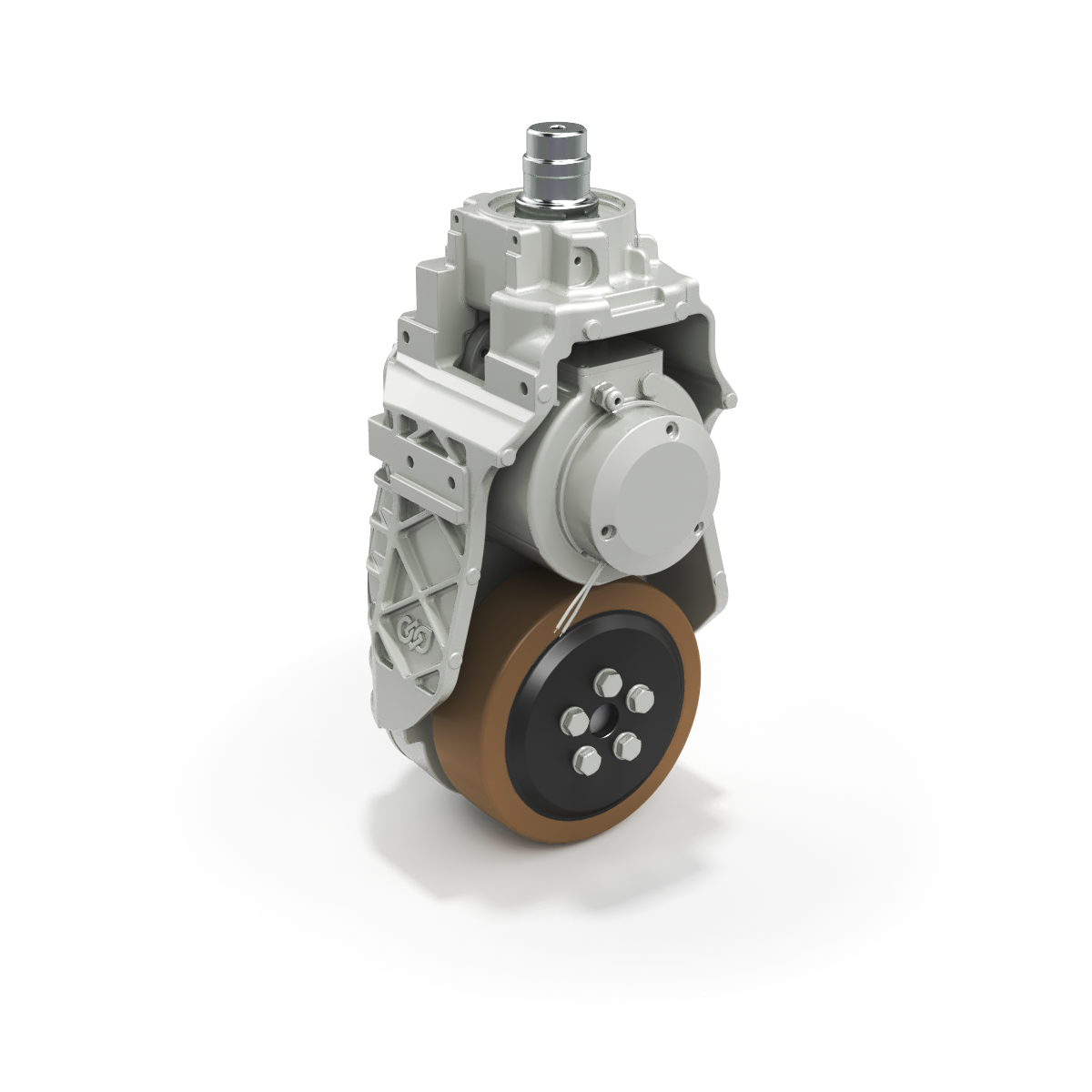

El Series

Bonfiglioli EL powertrains are a perfect match for the most demanding warehousing applications (Class 2 and Class 3). Warehousing trucks require high maneuverability in tight spaces, provided by drives like the EL series drives, with the smallest operating radius in vertical arrangements.

key features

Specifications

Torque range
3,982 … 16,816 in-lb
Stall Torque Range
Type Torque (Nm)
EL 100 450
EL09 V 500
EL96 500
EL10 V 900
EL300 1100
EL92 1500
EL93 1500
EL94 1500
EL14 V 1900
Torque range
450 ... 1,900 Nm
Gear ratios
13 ... 32
Power range
2 ... 7 kW

Specifications

Cold environment versions
Integrated tiller or castor wheel supports

Applications

Steerable drives

High maneuverability in tight spaces is one of the major challenges that stackers face in a...

Traction systems

High efficiency and performance, combined with low maintenance and less noise, are the key features...
