HF Series

Helical Parallel-Shaft Gearboxes for hoisting

Download documents
Download documents

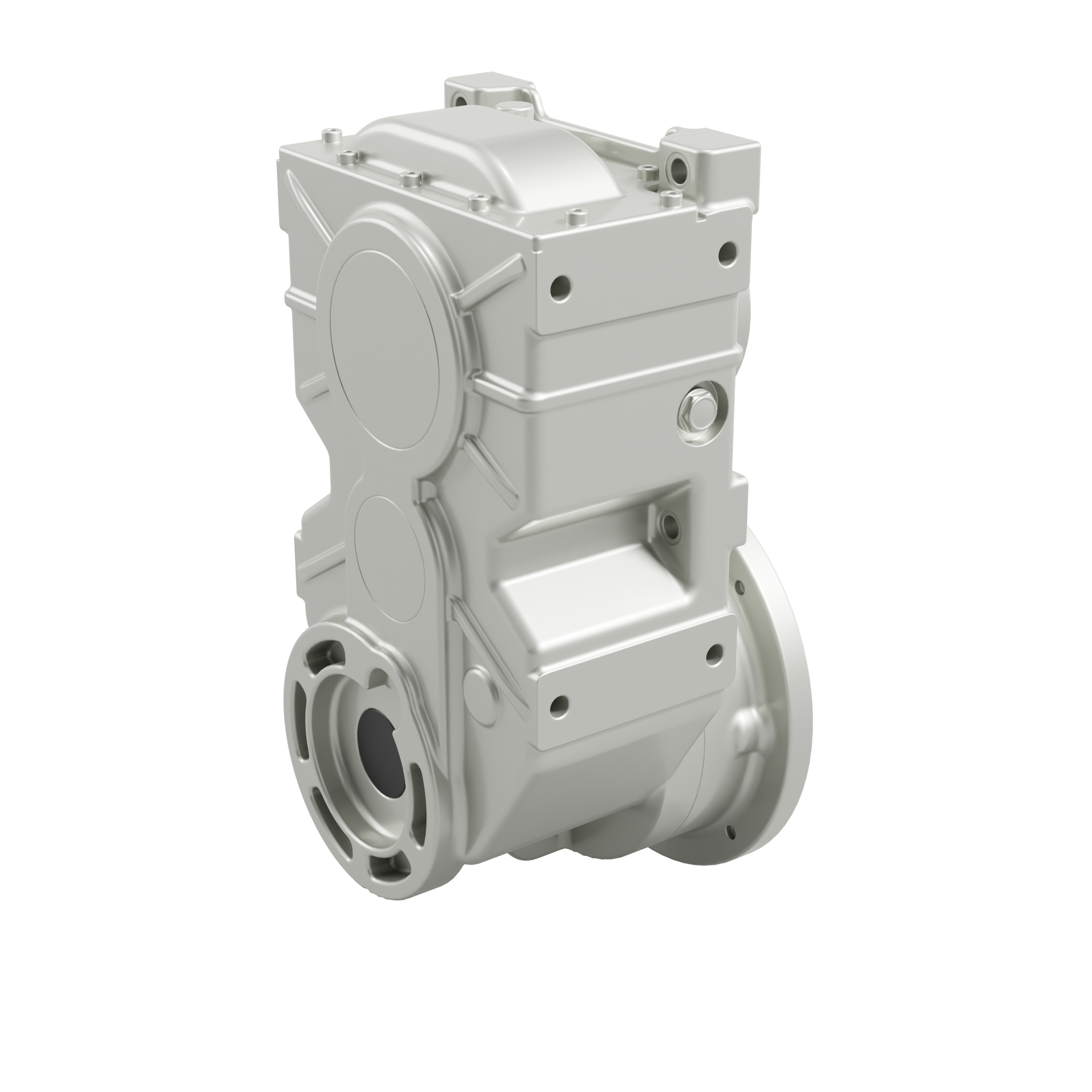

HF Series

HF series - Hoist drives are the new range of drive solutions dedicated for hoist and EOT cranes. The design of HF series has been framed by our synergetic R&D team after performing detailed data analysis of real operating conditions and conducting several interactions with many crane manufacturers to understand operating challenges faced by them to define needs for special design features which were incorporated in the products. The products are designed for higher FEM & ISO classes to have higher safety, high reliability also ensuring higher performances with precise operations for hoists. Additionally, the higher input to output offset and higher space between motor and drum installation provide an advantage to the crane manufacturers to choose from a wide range of drum sizes available in the market.

Key features

Specifications

Torque range
3585 … 60752 in-lib
Torque Range
HF 40HF 40HF 70HF 70HF 125HF 1258000800060006000400040002000200000146530726864
Torque range
1465 … 6864 Nm
Gear ratios
28,3 … 162,7
Transmissible Mechanical Power
1.1 … 15

Specifications

  • Key benefits
  • Main options
  • Motor options
Applications

Industrial cranes

The high reliability and robustness of Bonfiglioli’s products ensure safety in vessel handling cranes. We can provide a complete solution for all the drives in these machines. Through our experience, we have developed gearmotors and inverters with dedicated crane features that simplify machine systems' integration and design.

Horizontal & Low handlings

Bonfiglioli solutions for horizontal and low handling applications are cost-effective, compact and reliable.
Our products are designed to meet and exceed the demanding requirements placed on these cranes: from the high radial loads of the slew drive to the precision necessary in the hoisting speed control and finally to the dynamics of the cross travel drive.

Warehouse lift & low process

Components in overhead indoor cranes need to be space optimized.
Thanks to our products’ mounting flexibility and compactness, our customers will always find the solution that optimally meets their space requirements. To further increase efficiency, Bonfiglioli can also provide regenerative inverters to save the energy generated when lowering loads.

Downloads

Catalogues
Product Catalogue - Parallel Shaft gear Units - HF SERIES

Download

Operating instructions
Installation, Operation, Maintenance Manual and Spare parts list - HF SERIES

Download
