800 Series

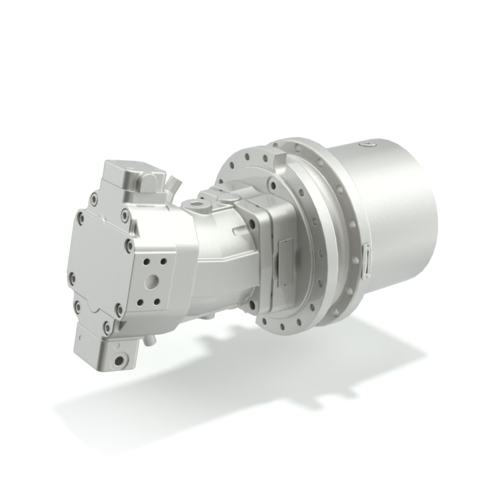

Thanks to a modular architecture and using a part of the same components of the well-known 300 series the new 800 winch drive series is extremely flexible. Additional standard stages widen the available range of ratios. A broad spectrum of motor flanges allows the combination with preferred electric as well as hydraulic motors; and the possibility to use the bevel gears of 300 series allow compact designs. Born to cover easly and fastly the most common project based applications.

Key features

Specifications

Torque range

FEM M5-T2-L5 (@ 15 rpm) up to 285.000 Nm

Key benefits

1. Flexibility
2. Low time to market

Main options

Linear and Angular versions

Temperature sensor

On demand

Sizes

810 - 824

Torque range

FEM M5-T2-L5 (@ 15 rpm) up to 285.000 Nm

Gear ratios

Starting from 1:17

Brake options

Hydraulic brake on demand

Applicable motors

Hydraulic and Electric

Motor options

On demand

Specifications

Certifications
1. Class Cerifications on demand
2. ATEX conformity on demand

Heavy Duty Series

BX and BY Heavy Duty asynchronous motors are manufactured to exceed the requirements of the most demanding industrial applications. Bonfiglioli Heavy Duty Asynchronous motors, indeed, comes with a best in class set of features: cast iron frame, C3 corrosion protection, regreasable bearings, and Shock Pulse Measurement predisposition as standard on all sizes, are only few of the characteristics that makes these motors the most suitable also in the harshest enviroments. Moreover, Heavy Duty BX and BY can be further personalized and adapted to our customers needs thanks to a wide range of available options. Additionaly, independetly by the motor size, all the BX Heavy Duty motors can be equipped with DC brake. Concluding, Heavy Duty motors are available with IEC frame and are certified to fulfill the Minimum Efficiency Performances, set by most of the worldwide countries.

EVOX BXN Series

BXN, MXN and MNN are asynchronous low voltage e-motors, developed to be modular, efficient and reliable. The new EVOX e-motor family is highly versatile and easy to adapt to a wide variety of needs: BXN is the answer to increasingly complex tech market demand while complying with the strictest energy efficiency standards. Posing no voltage or positioning limits and boasting easy add-on modular accessories and a great variety of versions and options, the EVOX BXN Series is the perfect partner for your business. The motor is available both stand alone and in a compact coupling with Bonfiglioli Gear Units.

BN Series

BN Series asynchronous motors with aluminum frames are the right solution for a wide range of general purpose industrial applications. Both the IEC and Compact motor are available in IE1 (BN/M) IE2 (BE/ME) and IE3 (BX/MX) efficiency classes according to the international standard IEC 60034-30. Furthermore, Bonfiglioli's e-motors can be equipped with several options: protection class up to IP 56, tropicalized, corrosion-resistant paint, and anti-condensation heaters. Moreover, the BN/M and BX/MX motor Series are also available in the BrakeMotor version with a selection of AC or DC brakes. To maximize our e-motor flexibility, all of them can be controlled with inverters.

BE Series

BX, BE and BN Series asynchronous motors with aluminum frames are the right solution for a wide range of general purpose industrial applications. Both the IEC and Compact motor are available in IE1 (BN/M) IE2 (BE/ME) and IE3 (BX/MX) efficiency classes according to the international standard IEC 60034-30. Furthermore, Bonfiglioli's e-motors can be equipped with several options: protection class up to IP 56, tropicalized, corrosion-resistant paint, and anti-condensation heaters. Moreover, the BN/M and BX/MX motor Series are also available in the BrakeMotor version with a selection of AC or DC brakes. To maximize our e-motor flexibility, all of them can be controlled with inverters.

BX Series

BX Series asynchronous motors with aluminum frames are the right solution for a wide range of general purpose industrial applications. Both the IEC and Compact motor are available in IE3 efficiency classes according to the international standard IEC 60034-30. Furthermore, Bonfiglioli's e-motors can be equipped with several options: protection class up to IP 56, tropicalized, corrosion-resistant paint, and anti-condensation heaters. Moreover, the BN/M and BX/MX motor Series are also able available in the BrakeMotor version with a selection of AC or DC brakes. To maximize our e-motor flexibility, all of them can be controlled with inverters.

BSR Series

The synchronous reluctance motor guarantees a sustainable ecological solution which decreases the total environmental impact thanks to the absence of magnets and increased efficiency. Reduced operating costs allow a fast return. This product benefits from the proven simplicity and reliability of induction motors and the higher efficiency of synchronous motors.

BCR Series

BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions.

BMD - Servomotors

BMD servomotors are permanent magnet synchronous motors with highly compact dimensions and low inertia. They meet the most stringent demands for precision, dynamics and speed settings thanks to their high-quality neodymium iron boron rare-earth magnets and our excellent design. The motors are equipped with the latest encoder technology and are optimized for operation with frequency inverters and precision planetary gearboxes, offering an excellent synergy. More modularity is given with many options availabilities. Flywheel option provide excellent control characteristic for application with high load inertias, brake option, forced ventilation extend the performance in continuous duty operation and critical environment temperature. Even more flexibility is get due to our own design. Together with customer we are partners in developing tailored made solution wherever more functionality and features are needed to meet specific requirements.

Applications

Deck machinery

The Bonfiglioli and O&K lines of winch drives expertly meet requirements for lifting and lowering the cutter head on ladder winches and anchor boom winches on dredging vessels. Rated to FEM M5 standards, these series of drives are built to resist harsh environments and load shocks during long operation. Highly reliable and safe, the products benefit from marine specifications (surface protection and oil seals).The Bonfiglioli and O&K lines of winch drives expertly meet requirements for lifting and lowering the cutter head on ladder winches and anchor boom winches on dredging vessels. Rated to FEM M5 standards, these series of drives are built to resist harsh environments and load shocks during long operation. Highly reliable and safe, the products benefit from marine specifications (surface protection and oil seals).

Deck Machinery

Bonfiglioli planetary drives offer robust and resistant solutions for all deck machinery applications. A wide range of combinations is available in high power applications.

Offshore platform cranes

The Bonfiglioli and O&K lines of winch drives excellently meet requirements for raising and lowering the cutter heads of winches on offshore construction vessels. Rated to FEM M5 standards, these series of drives are built to resist harsh environments and load shocks during long operation. Highly reliable and safe, the products benefit from marine specifications (surface protection and oil seals).

Lifeboat davit cranes

Class compliant with SOLAS, the Bonfiglioli and O&K range of winch drives excellently meets the requirements for lifting and lowering lifeboats. Rated with FEM M5 standards, these series of drives are compact and adaptable to any of our customers’requirements. Type approval is available for these series.

Deck Machinery

The Bonfiglioli and O&K range of winch drives expertly meets the requirements for lifting and lowering loads on work and tug boat decks. Rated to FEM M5 standards, these series of drives are built to resist harsh environments and load shocks during long operation. Highly reliable and safe, the products benefit from marine specifications (surface protection and oil seals).

Deck machinery

The Bonfiglioli and O&K range of winch drives excellently meets the requirements for lifting and lowering any load on the deck of an offshore platform. Rated to FEM M5 standards, these series of drives are built to resist harsh environments and load shocks during long operation. Highly reliable and safe, the products benefit from offshore specification (surface protection and oil seals).

Offshore cranes

The Bonfiglioli and O&K range of winch drives excellently meets the requirements for lifting and lowering the cutter head on offshore platforms. Rated to FEM M5 standards, these series of drives are built to resist harsh environments and load shocks during long operation. Highly reliable and safe, the products benefit from offshore specification (surface protection and oil seals).

Deck machinery

By combining the Bonfiglioli and O&K product lines, Bonfiglioli planetary drives offer the widest torque range available on the market today. Both gearboxes with rotating housing and non-rotating housing are configurable for electric and hydraulic applications. The various possible combinations of these drives testify to the high modularity of Bonfiglioli solutions for deck machinery.

Cargo cranes

Bonfiglioli slew drives can withstand very high torque while maintaining high efficiency with reduced dimensions and weight. Suitable for most severe duties in a marine environment, these drives are available with integrated pinion. Their design optimizes torque performance and radial load capacity to give excellently mesh pinion and ring gear. For accurate adjustment, the Bonfiglioli series are available with eccentric mounting between the pinion axis and the casing axis.

Pipe tensioners

Deck machinery

Bonfiglioli planetary drives offer robust and resistant solutions for any deck machinery application. A wide range of combinations is available in high power applications.

Drilling machines

Thanks to reliable series of products, Bonfiglioli gives every OEM the best possible options for choosing a track drive system. High performance, including high torque in a compact space, is one of our portfolio’s key benefits.

Building cranes

Bonfiglioli slew drives provide the safest, most effective solution for building cranes. Thanks to long established experience, Bonfiglioli offers robust and reliable products that meet its customers’ needs.

Truck-mounted cranes

Bonfiglioli slew drives provide the safest, most effective solution for truck-mounted cranes. Our products’ flexibility matches the versatility of this typical application, allowing the highest reach and the best maneuverability.

Rough terrain cranes

Bonfiglioli slew drives provide the safest, most effective solution for rough terrain cranes. Our products’ flexibility matches the versatility of this typical application, allowing the highest reach and the best maneuverability.

Crawler cranes

With a reliable series of products, Bonfiglioli gives OEMs the best possible choice of a track drive system for crawler cranes. The reliability and robustness of this series allow the machine to resist harsh environments and extend life service.

Heavy lift cranes

The Bonfiglioli and O&K range of winch drives expertly meets the requirements for lifting and lowering any type of load on the deck of pipelayers and cable layers. Rated to FEM M5 standards, these series of drives are built to resist harsh environments and load shocks during long operation. Highly reliable and safe, the products benefit from marine specifications (surface protection and oil seals).

Lifeboat davit cranes

Class compliant with SOLAS, the Bonfiglioli and O&K range of winch drives meets perfectly the requirements for lifting and lowering lifeboats. Rated with FEM M5 standards, these series of drives are compact and adaptable to any of our customers' requirements. Type approval is available for these series.
