Asynchronous motors, BX Series | Australia

BX Series

BX Series asynchronous motors with aluminum frames are the right solution for a wide range of general purpose industrial applications. Both the IEC and Compact motor are available in IE3 efficiency classes according to the international standard IEC 60034-30. Furthermore, Bonfiglioli's e-motors can be equipped with several options: protection class up to IP 56, tropicalized, corrosion-resistant paint, and anti-condensation heaters. Moreover, the BN/M and BX/MX motor Series are also able available in the BrakeMotor version with a selection of AC or DC brakes. To maximize our e-motor flexibility, all of them can be controlled with inverters.

Key features

Specifications

Degree of protection

Standard IP55
Standard for brake motors IP54

Mounting options

IM B3
IM B5
IM B14

Output

IEC

Motors

3 phase asynchronous

Specifications

Key benefits
- Reduced operating cost
- Energy saving
- Compliant to all the MEPS
- Complete (Gearbox + Motor) Solution
- Control flexibility
- Global motor (can be utilized in most of the markets)
Conformity
Efficiency - IEC 60034-30:2008
Low Voltage Directive - 2006/95/EC
Electromagnetic Compatibility
Directive - 2006/95/EC
Power range
Available voltages include
@50 Hz
230/400
290/500
400/690
290/500
@60 Hz
230/460
330/575
265/460
460/800
Brake options
Brake types:
AC & DC brakes

Brake-related options:
Manual release lever
Soft-start flywheel
Capacitive filter
Brake separate power supply
Brake functionality check (micro-switch)
Motor options
- Thermistors and thermostat sensors
- Independent forced cooling
- Incremental, sin/cos absolute single/multi-turn encoders
- Tropicalization
- Anti-condensate heaters
- Up to IP56 protection

Types & Powers

POWER RANGE

BX 90SR	0.75
BX 90S	1.1
BX 90LA	1.5
BX 100LA	2.2
BX 100LB	3
BX 112M	3.7
BX 132SB	5.5
BX 132MA	7.5
BX 160MB	11
BX 160L	15
BX 180M	18.5
BX 180L	22

AS Series

The AS Series benefits from years of recognition in the industry and has become a best seller for quarry and mining applications, where reliability and low maintenance are key factors. These Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX) and reluctance motors (BSR) can be coupled with the AS Series: Thanks to the breadth of its e-motor portfolio, Bonfiglioli can always provide customers with the perfectly balanced solution, in terms of efficiency, dynamics and cost-effectiveness.

C Series

The C Series is designed for the requirements of standard tasks in the industrial environment. These series achieve first-rate reliability, efficiency, robustness, and a wide output torque range. The extremely wide range of gear ratios, achieved through 2-, 3- or 4-stage versions, allows the customer to adapt the C Series to every application and to find the perfect match for output speed requirements. The C Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the C Series.

F Series

The F Series is an outstanding solution for customers looking for a drive that can maximize mounting flexibility. Thanks to the housing's lateral holes, the F Series can also be side mounted directly into the machine, in addition to all the conventional mounting positions. This gearmotor guarantees elevated efficiency, reliability and low-noise operation. High torque density, a range of wide gear ratios and a compact design complete the F Series' characteristics. The F Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the F Series.

S Series

The S Series design makes this gearmotor particularly effective for pump, fan and blower applications. To meet the needs of customers in these sectors, the S Series is also available in the foot or flange versions and can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX) and reluctance motors (BSR) can be coupled with the S Series. With the breadth of its portfolio, Bonfiglioli provides customers with an outstanding balance of efficiency, dynamics and cost effectiveness.

TA Series

The TA Series has long has long been established as a best seller for quarry and mine applications where absolute reliability and low maintenance are key factors. Another winning factor is the backstop option that prevents back driving in the case of inclined conveyors. This gearbox can be completed by selecting from a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors, both IEC and compact (BN-BE-BX/M-ME-MX), can be coupled with the TA Series providing our customers a complete drive solution.

A Series

The A Series combines high efficiency and reliability, low maintenance costs and a wide torque range. The right angle layout between INPUT and OUTPUT makes the A Series particularly compact. The gear set combination makes this right-angle product the most efficient and durable in Bonfiglioli's light- and medium-duty portfolio. The A Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the A Series.

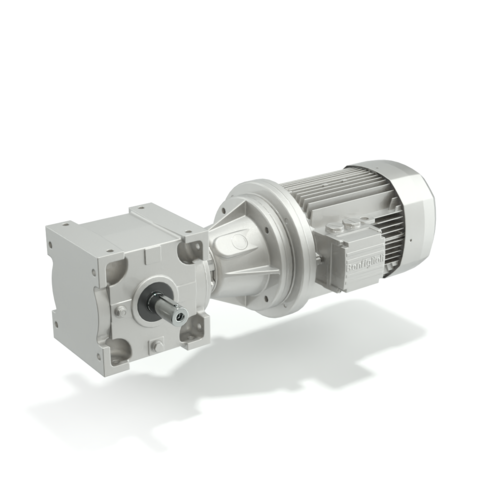

RAN Series

The RAN Series are designed to fit the purpose of transmission laid out in right angle setting. Easy to fit and almost maintenance-free, RAN Series offer multiple shaft arrangements and a choice of several exact gear ratios, beside the 1:1, that come handy when designing synchronized drive system. Also available in the version for screw jack duty.

VF/W Series

VF/W Series are worldwide known: they succeeded in combining uncompromising quality with state-of-the-art technology and price effectiveness. Absolute flexibility is achieved by the wide choice of mounting options, shaft configurations and motor interfaces, all offered as standard. Furthermore, thanks to several patented manufacturing techniques Bonfiglioli's VF/W Series stands out for their long operating lifetime and reliability. Finally our VF/W Series can be completed trough the selection of a wide range of electric motor entirely manufactured by Bonfiglioli. Asynchronous-motors, both IEC and compact, can be coupled with VF/W Series providing to our customers a complete drive solution. Looking for an Enhanced Protection gearmotor suitable for Food&Beverage, Chemical and Pharma industries as well as for harsh environments in general?

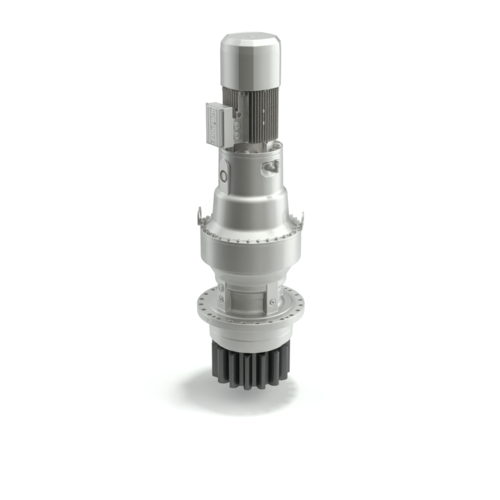

700 TW Series
