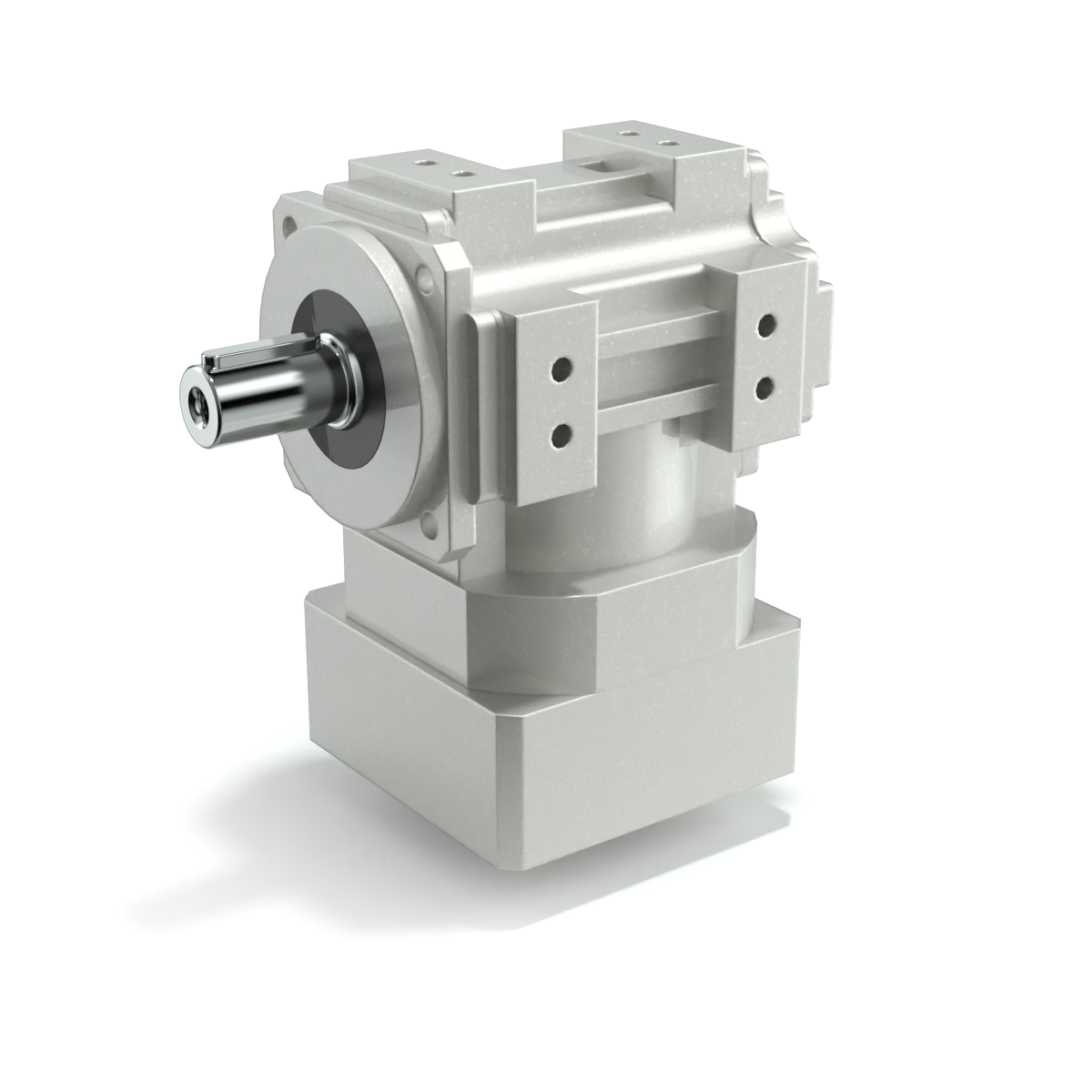

KR

对于那些需要以极具竞争力的价格获得紧凑性和中等精度的应用来说，灵活且具有成本效益的KR系列不失为一种选择。该产品系列用途非常广泛，可以提供多种配置：实心/空心轴；单/双轴扩展件；锁紧盘；法兰选配件等。

规格

扭矩范围
35.4 ... 1,504.5 lb-in
尺寸
010, 020, 030, 040
齿轮比
1级：比率1; 2; 5
最大径向力
500 ... 5,500 N
防护等级
IP65
输入速度
高达5,000 min<sup>-1</sup>
扭转齿隙
1级：低于8弧分
扭转刚度
0.5 ... 11 Nm/arcmin
润滑
标准；食品级
输出
实心轴、空心轴
输入
电机适配器；不带电机适配器

规格

•节省空间的布局的直角设计
•优化齿隙
•适用于连续工作和间歇工作
•多种输出配置
•可选增强轴承
