600WT Series

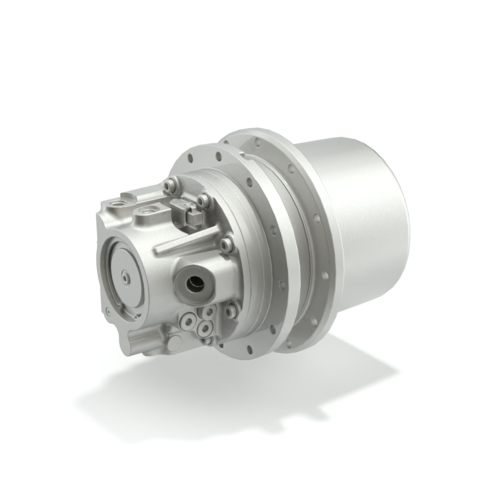

Bonfiglioli 600WT wheel drives are the best choice for wheeled agricultural equipment, such as self-propelled agricultural sprayers. This solution is the perfect combination of proven mechanical parts, with a new, integrated 68cc variable hydraulic motor, especially developed for closed-loop, highly demanding applications.

Specifications

Torque Range

Type
Torque (Nm)
  • 605 TX
    12000
  • 606 WT
    17000
  • 607 WT
    22000

  • Main options

    Dynamic & service brake

  • Torque range

    12,000 ... 22,000 Nm (106,208 … 194,716 in-lb)

  • Gear ratios

    22 ... 43.8

  • Input speed

    up to 4,000 rpm

  • Brake options

    Mechanical gear disengagement
    Speed sensor
    Dynamic service brake with inspection port, directly serviceable from motor side (no need to remove it from the machine)

  • Motors

    Integrated swash plate variable hydraulic motor
    Available with both hydraulic two position or electric proportional variable displacement control
    Zero displacement capacity

Key features

Integrated swash plate hydraulic motor

Available with both hydraulic two-position or electric proportional variable displacement control

Zero-displacement capability

Spring-applied hydraulic-release integrated parking brake

Faster, easier installation on the machine

Applications

Scroll

Sprayers

Wheel drives
