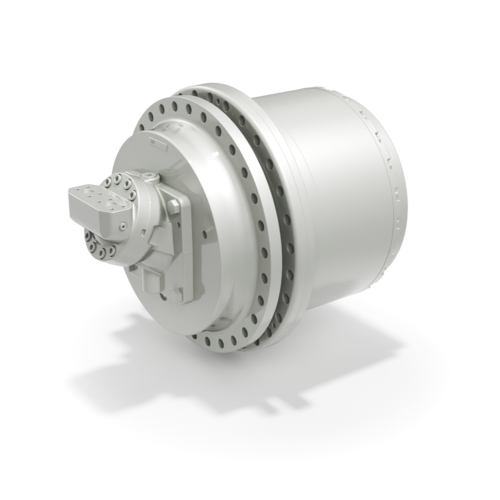

The F Series is perfectly suited to any crawler and milling machine. Thanks to compact, rugged design, high torque and load capabilities, these solutions are the best possible option for thes machines. All units are available with a fail-safe parking brake and for most cartridge type fixed or variable systems. Different disengagement systems are available on demand for all the sizes.


Discover more about O&K product range

Specifications

Torque Range

Type
Torque (kNm)
  • Small Final Drives
    |
  • F13A
    13
  • FD20
    20
  • F30
    30
  • Medium Final Drives
    |
  • F40
    40
  • F40A
    40
  • F55
    55
  • F55B
    55
  • F80
    80
  • F80XR
    80
  • F100
    100
  • F100XR
    100
  • Large Final drives
    |
  • F130
    130
  • F130XR
    130
  • F180
    180
  • F180XR
    180
  • F220
    220
  • F220XBR
    220
  • F260
    260
  • F280
    280
  • F360
    360
  • F420
    420
  • F440
    440
  • F560
    560
  • XLarge drives
    |
  • F620
    620
  • F650
    650
  • F700
    700
  • F700A
    700
  • F800
    800
  • F1100
    1100
  • F1300
    1300
  • F1800
    1800
  • F2000
    2000
  • F2200
    2200
  • F3000
    3000
  • Key benefits

    Special executions on request
    • Mechanical disconnect device
    • Low and high temperature version
  • Main options

    Mechanical disconnect device
  • Torque range

    130.000 ... 3.000.000 Nm (9,588 … 2,212,686 ft-lb)
  • Gear ratios

    19 ... 989
  • Input speed

    up to 4,000 rpm

Key features

Integrated hydraulic motor

3-7 Planetary wheels per stage

High availability by highest teeth and production quality

Integrated disc-brake

Notchless ground tooth root

Different ratios
