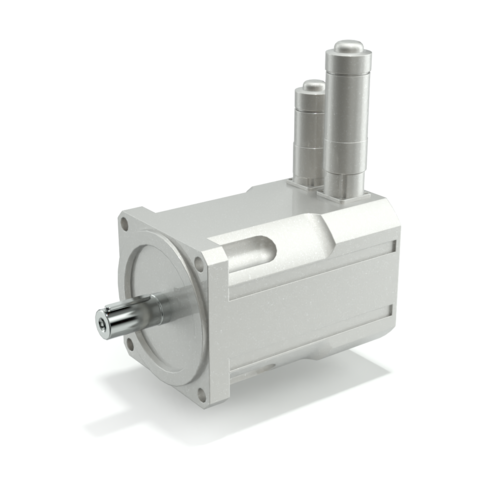

BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions.

Specifications

Torque Range

Type
Torque (Nm)
  • BCR2 0020
    0.20
  • BCR2 0040
    0.40
  • BCR2 0060
    0.60
  • BCR2 0080
    0.80
  • BCR3 0065
    0.65
  • BCR3 0130
    1.30
  • BCR3 0250
    2.50
  • BCR4 0100
    1.00
  • BCR4 0260
    2.60
  • BCR4 0530
    5.30
  • BCR4 0750
    7.50
  • BCR5 0660
    6.60
  • BCR5 1050
    10.50
  • BCR6 1350
    13.50
  • BCR5 1700
    17.00
  • BCR5 2200
    22.00
  • BCR6 1350
    13.50
  • BCR6 1900
    19.00
  • BCR6 2200
    22.00
  • BCR6 2900
    29.00
  • BCR7 2700
    27.00
  • BCR7 3200
    32.00
  • BCR7 4000
    40.00
  • BCR8 0400
    40.00
  • BCR8 0680
    68.00
  • BCR8 0930
    93.00
  • BCR8 1150
    115.00
  • Main options

    DC brake
    Optional 24 Vdc
  • Feedback

    Resolver (default)
    Optional Hiperface encoder (single- or multi-turn)
  • Temperature sensor

    PTC included
  • Sizes

    7 flange sizes
  • Torque range

    0.2 ... 115 Nm
  • Degree of protection

    IP65
    IP67 (optional)
  • Rated speed

    2000, 3000, 4500 rpm
    (depending on selected torque)
  • Inertia

    0,06 ...190 (kgm² x 10-4)
  • Certifications

    CE, UL
  • DC Brake

    Optional 24 Vdc
  • Conformity

    2014/34/EU (LVD) and 2014/30/EU (EMC)
  • Power supply & Power range

    230, 400 Vac

Key features

High torque range

Small inertia

Resolver onboard by default
