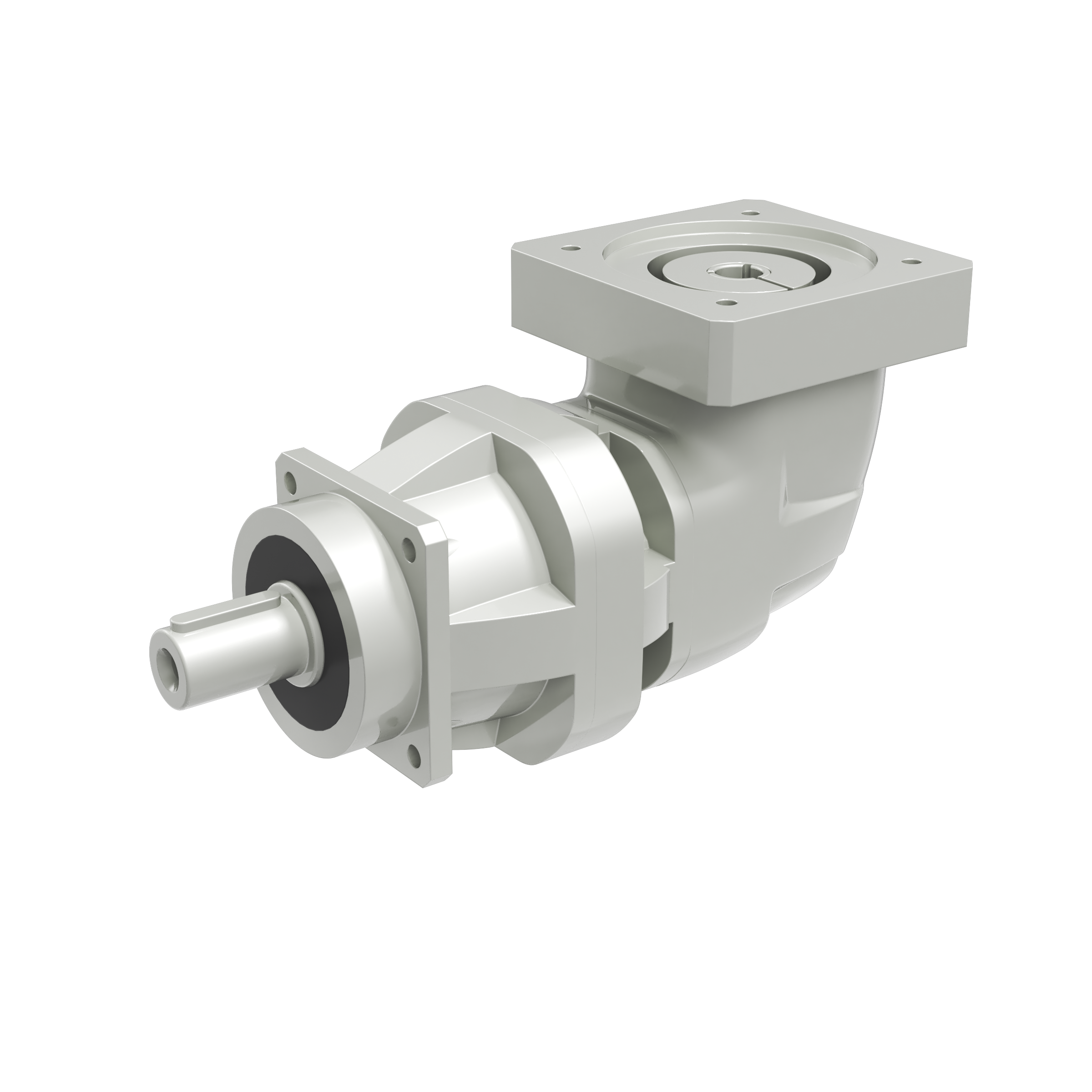

The TQK right-angle series represents the best solutions for issues of space saving, while maintaining the same top performance levels of the TQ in-line series. This series is particularly suited for the highly demanding requirements of servo systems, such as fast dynamic response, frequent reverse motion, precise position, motion control and high number of starts and stops

Specifications

Torque Range

Type
Nominal Torque (Nm)
  • TQK 060
    30
  • TQK 070
    70
  • TQK 090
    200
  • TQK 130
    400
  • TQK 160
    800
  • Sizes

    060, 070, 090, 130, 160
  • Gear ratios

    • 1 stage: 3 ... 10
    • 2 stages: 16 ... 100
  • Max radial force

    1,850 ... 15,000 N
  • Degree of protection

    IP65
  • Input speed

    Up to 6,000 min-1
  • Torsional backlash

    • 2 stages: less than 4 arcmin
    • 3 stages: less than 6 arcmin
  • Torsional stiffness

    4.3 ... 167 Nm/arcmin
  • Lubrication

    Standard; Food grade
  • Output

    Smooth keyless shaft; keyed shaft
  • Input

    Motor adapter; Without motor adapter

Key features

Highest installation flexibility

Optional reinforced bearings for high axial and radial overload forces

Designed for continuous duty and intermittence duty

Quiet operation

Compact design for space-saving

Great flexibility thanks to universal design

Applications

Scroll
