Mobility Solutions

About Mobility Solutions

Bonfiglioli has a range of solutions for the mobility sector. Our solutions include travel and track drives, wheel drives, slew drives, winch drives, mixer drives, hydraulic and electric drum drives.

Enquire Now

Name *

Surname *

Email address *

Tel *

Company *

Country *

Category *

Choose product category *

Message *

I agree

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Industries

Road Construction

Concrete

Building Construction

Earth Moving

Access & Aerial platforms

Defence

E-mobility

Agricultural machinery

Rail & Metro

Intralogistics

Products for Mobility Solutions

PLANETARY DRIVES

300 Series - Mobile

The 300 series is compact and powerful. Their planetary drive train makes them the ideal choice for all severe duty applications where shock loads and impacts are more the rule than the exception. The product configuration is highly versatile, due to several options for mounting, gear layout, output shaft and motor interface. All the features are available for each of the 20 finely spaced frame sizes, with a torque range of 1,000 to 1,100,000 Nm.

ELECTRIC POWERTRAINS

600WE Series

Bonfiglioli 600WE planetary drives incorporate an integrated, maintenance-free electric motor and offer significant benefits, including compact dimensions, low noise and high efficiency. 600 Series drives are designed for use with all kinds of aerial platforms and other types of mobile machinery, for indoor and outdoor use. This advanced powertrain solution uses a two- or three-stage gearbox offering reduction ratios of up to 1:145 to satisfy the widest possible range of needs. The gearbox is coupled with a low-voltage induction motor (BT Series), specially developed for traction power and control applications.

600F Series

Bonfiglioli supplies high-efficiency, low-noise planetary axles and drives with integrated high performance electric motors and low maintenance braking systems for Class 1 material handling vehicles. Typical applications include 3- and 4-wheel counterbalance lift trucks and ground support equipment. Bonfiglioli electric powertrains are fully tested in the factory and guarantee reduced energy consumption. This, in turn, means longer battery operating times, extended service intervals and lower cost of ownership. Bonfiglioli 600F Series drives are complemented by a range of idle steering systems based on axles or steering units, depending on the number of wheels on the vehicle.

600D Series

Bonfiglioli supplies versatile, low-noise drives coupled with electric motors for all-electric, battery-powered vehicles such as urban passenger cars, commercial vehicles and delivery trucks. This solution ensures a more energy-efficient operation and extended autonomy from the battery thanks to optimized, low backlash helical gears and high-speed bearings. The Bonfiglioli 600D Series of drives is extremely lightweight thanks to cast aluminum casings developed with Bonfiglioli's extensive process expertise. The 600D drives allow vehicle manufacturers to satisfy even the toughest restrictions on gross vehicle weight. They are complemented by a range of electric motors, inverters and matched mechanical joints and shafts to provide vehicle OEMs with complete powertrain solutions.

WHEELS DRIVES

600 Series

The Bonfiglioli 600 Series is the best solution when designing wheeled off-road machinery. With a compact design, high torque and load capacities, a negative multi-disk parking brake and an optional disengagement device to tow the vehicle in an emergency, these solutions precisely match the application requirements.

TRAVEL DRIVES

700C Series

Bonfiglioli 700C series units are unsurpassed by any crawler or milling machines. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems.

TRACK DRIVES

700CK Series

Extremely compact, lightweight, efficient and smooth to operate, 700CK Series track drives are powered by integrated axial piston hydraulic motors, developed in cooperation with Kayaba.

700CP

Extremely compact, lightweight, efficient and smooth to operate, 700CP Series track drives are powered by integrated axial piston hydraulic motors, developed in cooperation with Poclain hydraulics.

700CT Series

Extremely compact, lightweight, efficient and smooth to operate, 700CT Series track drives are powered by integrated axial piston hydraulic motors.

SLEW DRIVES

700T Series

The Bonfiglioli 700T series provides the safest, most effective solution for cranes, excavators and forestry machines. Highly appreciated by all major manufacturers, the 700T Series has long been established in the crane, excavator and special equipment industries.

700TK Series

The 700TK Series is the compact and powerful slew drive package for 1.5- to 150-ton excavators. The units are powered by integrated axial piston hydraulic motors, developed in cooperation with Kayaba and can be fitted in very small spaces.

DRUM DRIVES

500 Series - Hydraulic solution

Absolute dependability, low maintenance, compactness and cost-effectiveness are the key features of the redesigned 500 series, the unparalleled line of drives for transit mixers. Eight models available for mixing capacity ranging from 1 to 14 m3.

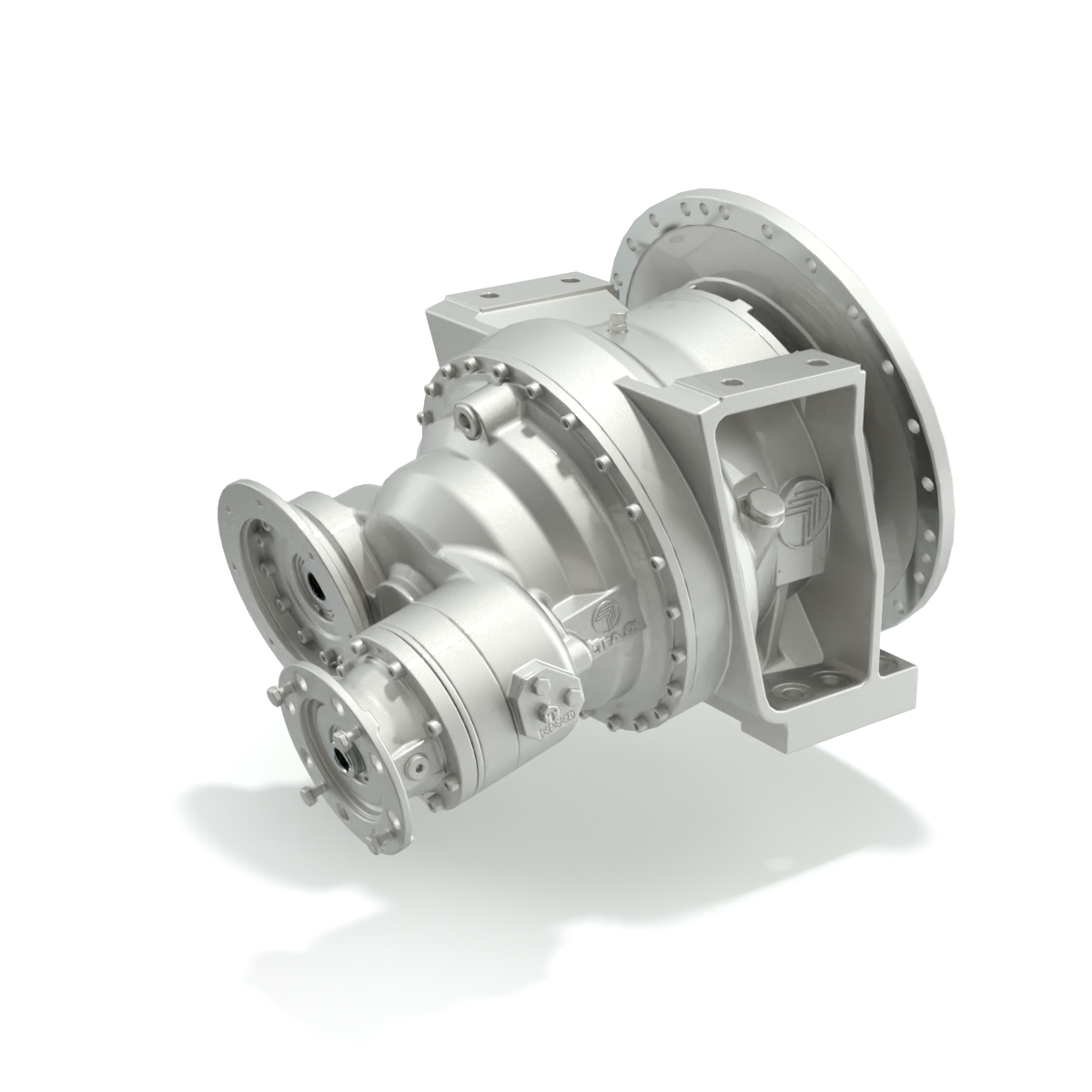

500 Series - Electric solution

This solution is designed for use with medium/large mixer trucks that have medium/long delivery distances to travel. Bonfiglioli's innovative solution comprises a Bonfiglioli 500 Series gearbox coupled to an AC electric motor, providing normal power, and a DC electric motor for emergency use. This product not only guarantees greater energy efficiency and reduced fuel consumption, but also helps cut cement mixer truck operating costs. Performance is improved too: rotation speed control is more accurate, operating noise levels are significantly lower. Finally, functionality remains higher in the event of a failure: the presence of a second backup DC motor provides reassuring redundancy and eliminates the risks and potentially hazardous situations caused by failures of the drum emptying system.

WINCH DRIVES

700C Series

The Bonfiglioli 700C Series is highly suitable for any crawler. Thanks to compact, rugged design, high torque and load capabilities, and optional mechanical lifetime seals, these solutions are the best possible option for these machines. All units are available with a fail-safe parking brake and most have the option of cartridge type fixed or variable systems.

CUTTER DRIVES

700C Series

Dual-stage planetary drive units with integrated pulley support designed for cold planers and milling machines with engine power from 200 to 550 kW and rotor width from 1.0 to 2.5 m. The offset input option ensures higher machine productivity due to increased cutting depth. The unique integrated cooling system allows greater performance, easier system maintenance and optimal level of reliability.
