DGM Modular
Decentralized inverter

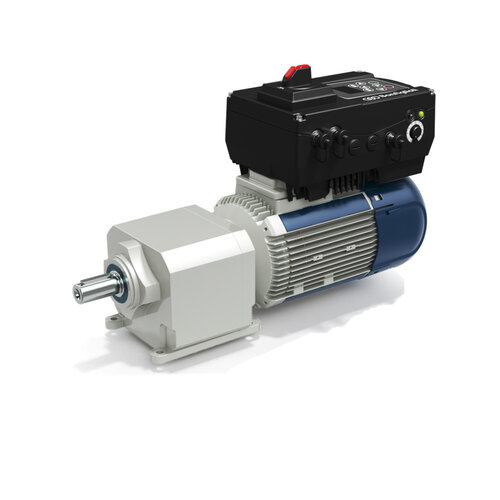

From the Bonfiglioli experience comes DGM Modular, the new range of decentralized inverters for the control of asynchronous & Reluctance synchronous motor control. DGM Modular is perfect for Packaging and Logistic Sectors, thanks to various Option and It's optimal quality-price ratio. DGM Modular can be supplied combined with a gearmotor or separately, for wall or on-board motor mounting. When the inverter is supplied with the gearmotor, mechanical assembly, wiring and basic programming are performed by Bonfiglioli, thus reducing installation times, limiting the risk of errors. Design and installation are faster than inverters installed in classic centralized switchboards and, by decentralizing the control, it is possible to minimize the size of the panel itself.

Specifications

  • The power is distributed in the different enclosures according to the following table:

    Series - Frame size | kW

    DGM-MPM
    DGM-MPM - A | 0.55
    DGM-MPM - A | 0.75
    DGM-MPM - A | 1.1
    DGM-MPM - A | 1.5
    DGM-MPM - A | 2.2 low duty
    DGM-MPM - B | 2.2
    DGM-MPM - B | 3.0
    DGM-MPM - B | 4.0
    DGM-MPM - B | 5.5 low duty
    DGM-MPM - C | 5.5
    DGM-MPM - C | 7.5
    DGM-MPM - C | 11.0 low duty
    DGM-MPM - D | 11.0
    DGM-MPM - D | 15.0
    DGM-MPM - D | 18.5
    DGM-MPM - D | 22.0
    DGM-MPM - D | 30.0 low duty
  • Key benefits

    • Application switchboard volume and cooling system reduction
    • Streamlined and simpler plant design.
    • Plant extensibility not affected by switchboard capacity.
    • No expensive shielded power cables required (otherwise necessary to meet the EMC standards).
  • Main options

    CONTROL
    • Reluctance synchronous motor control.
    • Automatic starting torque optimization
    • Configurable operation with typical quadratic curve
    • Motor-potentiometer function
    • Configurable quick restart
    • Perfect Sensorless control at low Speed

    SAFETY AND PROTECTION
    • STO operating safety option with M12 8P
    • Motor protection I2t function
    • Locked shaft control
    • Start error assessment
    • Motor current limitation based on the settings
    • Embedded EMC filter in all versions

    FIELD BUS
    • Fieldbus option
    • Automatic scrolling compensation
    • Brake Chopper Option
    • Brake Rectifier module Option

    PROGRAMMING
    • Cover embedded MMI option
  • Sizes

    DGM-MPM
    Three-phase version with a wide range of configuration options.
    • 0.55 … 30 kW
  • Degree of protection

    IP65

Key features

Perfect Sensorless vector control at low Speed

Reluctance and permanent magnet synchronous motor control.

Potentiometer function

Automatic starting torque optimization

Fieldbus option

Cover embedded MMI option

Braking chopper option

Cover embedded MMI option

Brake Rectifier module Option

Cover embedded main switch option

STO operating safety option

Applications

Scroll

Related Products

Download Documents

Product catalogue - DGM series

Product catalogue - DGM series
