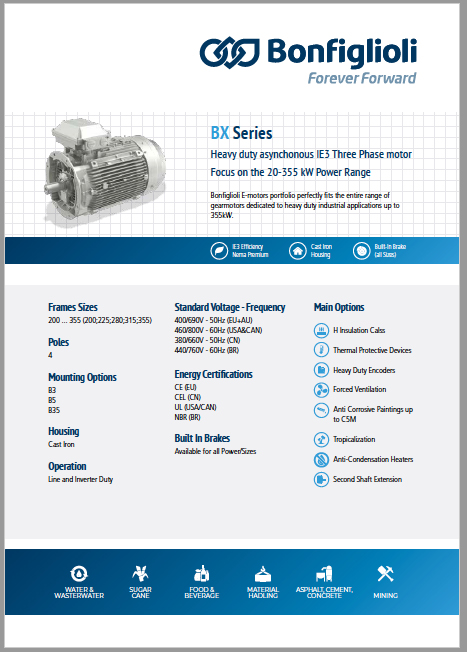

IE3 and IE4 asynchronous three phase electric motor

Heavy Duty Series

BX and BY Heavy Duty asynchronous motors are manufactured to exceed the requirements of the most demanding industrial applications. Bonfiglioli Heavy Duty Asynchronous motors, indeed, comes with a best in class set of features: cast iron frame, C3 corrosion protection, regreasable bearings, and Shock Pulse Measurement predisposition as standard on all sizes, are only few of the characteristics that makes these motors the most suitable also in the harshest enviroments. Moreover, Heavy Duty BX and BY can be further personalized and adapted to our customers needs thanks to a wide range of available options. Additionaly, independetly by the motor size, all the BX Heavy Duty motors can be equipped with DC brake. Concluding, Heavy Duty motors are available with IEC frame and are certified to fulfill the Minimum Efficiency Performances, set by most of the worldwide countries.

Key features

Specifications

Feedback

EN7, EN8

Temperature sensor

E3, D3, K1

Degree of protection

Standard IP55 also for Brakemotors

Power range

IE4: 75 - 200kW
IE3: 30 - 355kW

Mounting options

IM B3
IM B5
IM B35

Motors

3-Phase asynchronous induction motor

Specifications

Key benefits
- Robustness
- Long lifetime
- Wide power range
- Energy saving
- Compliant to all the MEPS
- Complete (Gearbox+Motor) Solution
- Control flexibility
- Global motor (can be utilized in most of the markets)
Sizes
IE4 motors:
- from size 280 to size 355
IE3 motors:
- from size 200 to size 355
Certifications
IE4 motors:
- CE/UKCA
IE3 motors:
- CE/UKCA
- UL
- CEL
- NBR
- EECA
- BIS
Conformity
Efficiency - IEC 60034-30:2008
Low Voltage Directive - 2006/95/EC
Electromegnetic Compatibility Directive - 2006/95/EC
Power supply & Power range
Avaiable Voltages as Standard:
400/690 - 50Hz
380/660 - 50Hz
460 - 60Hz
440/760 - 60Hz
Motor options
- Thermistors and thermostat sensors
- Independent forced cooling
- Heavy Duty Encoders
- Tropicalization
- Anti-Condensate Heaters
- Up to IP56 protection

Types & Powers

IE4 POWER RANGE

BY 280SCK	75
BY 280MAK	90
BY 315SCK	110
BY 315SDK	132
BY 315MBK	160
BY 355SAK	200

IE3 POWER RANGE

BX 200LAK	30
BX 225SAK	37
BX 225SBK	45
BX 250MAK	55
BX 280SAK	75
BX 280SBK	90
BX 315SAK	110
BX 315SBK	132
BX 315SCK	160
BX 315MAK	200
BX 355MAK	250
BX 355MBK	315
BX 355MCK	355

HDO Series

When high output torque, robustness reliability and long operating life must be achieved, Bonfiglioli's HDx Series represent the best solution for our custmers needs. Thanks to high quality materials and an optimized design, HD Series can operate in the harshest environemt, as well as in explosive atmospheres, with low maintenance costs and long time service intervals. The output shaft can be chosen both in the parallel (HDP) or right angle(HDO) configuration and to always ensure the minimization of mounting space. HDx Series, furthermore, can be deeply customized thanks to an extremely wide options and accessories portfolio, thus matching most of the requirements of a large applications number.

HDP Series

When high output torque, robustness reliability and long operating life must be achieved, Bonfiglioli's HDx Series represent the best solution for our custmers needs. Thanks to high quality materials and an optimized design, HD Series can operate in the harshest environemt, as well as in explosive atmospheres, with low maintenance costs and long time service intervals. The output shaft can be chosen both in the parallel (HDP) or right angle(HDO) configuration and to always ensure the minimization of mounting space. HDx Series, furthermore, can be deeply customized thanks to an extremely wide options and accessories portfolio, thus matching most of the requirements of a large applications number.

3/H Series

The Bonfiglioli 3/H Series combines the high torque density of planetary gear units with the robustness and high-speed operation of the helical bevel heavy-duty products. This configuration can provide great power transmission in a very compact space, thanks to its angular layout. The 3/H Series can also come with a set of features such as hydraulic couplings or cooling circuits, adapted according to customers' needs..

A Series

The A Series combines high efficiency and reliability, low maintenance costs and a wide torque range. The right angle layout between INPUT and OUTPUT makes the A Series particularly compact. The gear set combination makes this right-angle product the most efficient and durable in Bonfiglioli's light- and medium-duty portfolio. The A Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD) and reluctance motors (BSR) can be coupled with the A Series.

700 TW Series

Bonfiglioli products are used in the latest state-of-the-art wind turbines to control the necessary functions of pitch and yaw drive systems. 700TW series planetary speed gearboxes (wind turbine yaw control gear motors) are used by a number of leading wind turbine manufacturers due to their advanced technical features, ensuring the highest level of performance.

Active Cube Series

The Bonfiglioli Active Cube is a frequency inverter offering both compactness and flexibility. This specific solution is adaptable on a wide range of machines, starting from servo to heavy industry applications. The broad support for various field bus systems and the standardized interface for motion control applications make Active Cube an excellent jack of all trades for your application needs.

Applications

Feeding

Feeders and conveyors transport materials from one stage of the mining process to the next.
Bonfiglioli is an expert on issues related to these applications: the high breaking torque required at startup, the high load shocks caused by material drops and the dusty environments in mines are only a few of the challenges that our products can successfully overcome. We can provide complete solutions for feeders and conveyors with integrated base plates and torque arms which are protected against harsh environments with special seals and paints to simplify machine design for our customers.
Furthermore, our clients can complete their drive selection through a wide range of inverters for tuning the operating speeds of feeders and conveyors and thus reducing energy consumption.

Belt & chain conveyor

Belt and chain conveyors are used in many industries to transport all kinds of material: metal, mining, coal, chemical, food, ports and others.
Bonfiglioli knows how the dimension of the correct solution taking loads and all other specific needs into account.
Our offerings span from harsh and explosive atmospheres to food contact environments, and offer a wide range of gearmotors and inverters.

Dewatering

Focusing on solid/liquid separation, the belt filter presses the product with mechanical pressure to squeeze the water out of the sludge. Flexibility in layout and mounting positions as well as high resistance in harsh, dusty and ambient conditions are key features that our products can deliver.

Flotation

Flotation cells mainly consist of big tanks where an impeller keeps the water/material solution rotating at a high speed. Use of specific chemical reagents and the possible addition of air in the solution enhances separation of the ore from the liquid.
For this application, Bonfiglioli provides helical bevel or parallel shaft gearmotors with more bearings. Output configurations are usually reinforced bearings to withstand by the machine impeller on the shaft. In some models, the machine requires injection of high-pressure air to maximize separation of the material from water. In this case, Bonfiglioli provides a gearbox equipped with a pass-through hole on the output shaft and with a specific interface on top of the gearbox for the pipeline connection.
HDOs are usually driven by belt transmissions, while HDPs are directly connected to the motor with a bell housing. Independent coolers are usually installed on bigger machines. Drywell is a commonly required feature.

Stacking & reclaiming

Multi-functional machines, such as stackers/reclaimers, store and gather material in large mining processes.
Bonfiglioli can provide solutions for all stacker/reclaimer drives. The products we supply are tailored to match the specific requirements of each machine drive: different brakes, forced lubrication, integrated base plates, cooling fans and oil expansion tanks are just a few examples of how we can meet our customers’ needs.
Finally, all the solutions can be further customized with a set of features specifically developed to resist the harsh mining environment.

Gantry cranes

The high reliability and robustness of Bonfiglioli’s products ensure safety in vessel handling cranes. We can provide a complete solution for all the drives in these machines. Through our experience, we have developed gearmotors and inverters with dedicated crane features that simplify machine systems' integration and design.

Overhead cranes

Components in overhead indoor cranes need to be space optimized.
Thanks to our products’ mounting flexibility and compactness, our customers will always find the solution that optimally meets their space requirements. To further increase efficiency, Bonfiglioli can also provide regenerative inverters to save the energy generated when lowering loads.

Loading/unloading material

Ship loaders/unloaders operate in one of the most demanding environments. The atmosphere at the docks can be extremely corrosive, and these machines must be able to work under all weather conditions.
Bonfiglioli is aware of these challenges and the solutions we provide are adapted with specific features for safe operation under such conditions and maximum reliability in every work situation.
