EVOX MXN Series

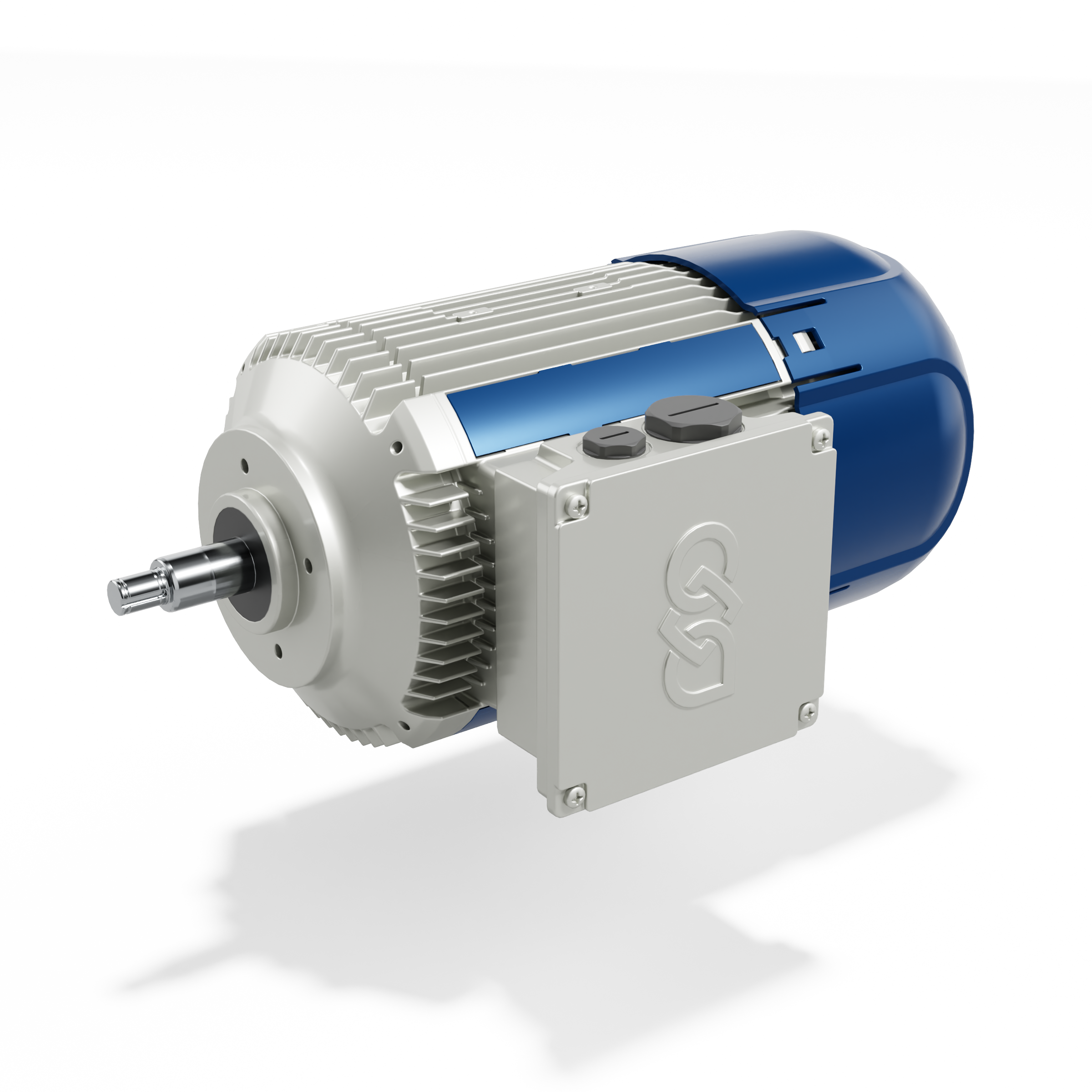

MXN are low-voltage three-phase compact asynchronous electric motors, specifically developed to be integrated, modular, efficient and reliable. Unlike standard stand-alone IEC motors, the new EVOX compact electric motor family is designed for direct gear unit coupling, ensuring maximum space-saving versatility and easy adaptation to meet a wide range of needs. MXN thus becomes the optimal compact answer to the increasingly complex space and performance demands of the technological market, while complying with the strictest standards in the field of energy efficiency.
Specifications
Power range detail
Mô tả đồ họa
| Motor size | Motor power [kW] |
|---|---|
| 05MA | 0.12 |
| 05MB | 0.18 |
| 10MA | 0.25 |
| 10MB | 0.37 |
| 20MA | 0.55 |
| 20MB | 0.75 |
| 25S | 1.10 |
| 25L | 1.50 |
| 30LA | 2.20 |
| 30LB | 3.00 |
| 35M | 4.00 |
| 40S | 5.50 |
| 40M | 7.50 |
Degree of protection
Standard IP55 for motors with and without brake
DC Brake
High-performance DC brakes
Power range
0.12 – 7.5 kW
Mounting options
Compact gearmotor coupling
Motors
3 Phase Asynchronous
Specifications
Key benefits
Modular and configurable
Reliable, perfectly balanced and robust
Compliant with the strictest energy efficiency standards
cULus, UKCA and CE certified as standard
Complete solution (gear unit + motor)
Reliable, perfectly balanced and robust
Compliant with the strictest energy efficiency standards
cULus, UKCA and CE certified as standard
Complete solution (gear unit + motor)
Main options
Global motor (high voltage and frequency flexibility)
Rotating terminal box (Different cable entry position)
Dynamic high-performance DC brakes
IP protection up to IP56 both on standard and braked motors
Rotating terminal box (Different cable entry position)
Dynamic high-performance DC brakes
IP protection up to IP56 both on standard and braked motors
Certifications
North America, Brazil, Europe, United Kingdom, India, China, Australia and New Zealand
Conformity
Efficiency classes of line operated AC motors (IE code) - EN 60034-30-1
LVD - Low Voltage Directive - 2014/35/EU
EMC - Electromagnetic Compatibility Directive - 2014/30/EU
ROHS - Restriction of Hazardous Substances - 2011/65/EU
Generic standards - Immunity for industrial environments - EN 61000-6-2
Generic standards - Emission standard for industrial environments - EN 61000-6-4
LVD - Low Voltage Directive - 2014/35/EU
EMC - Electromagnetic Compatibility Directive - 2014/30/EU
ROHS - Restriction of Hazardous Substances - 2011/65/EU
Generic standards - Immunity for industrial environments - EN 61000-6-2
Generic standards - Emission standard for industrial environments - EN 61000-6-4
Nguồn điện & Dải công suất
The new flexible 9-pin terminal box makes it easy to obtain the right standard voltage by simply changing the plug arrangement and select the right winding:
Winding 1 - WD1
115/200/230/400 – 50Hz
132/230/265/460 – 60 Hz
Winding 2 - WD2
200/346/400/690 – 50Hz
230/400/460 – 60Hz
Winding 3 - WD3
110/190/220/380 – 50Hz
127/220/255/440 – 60Hz
Winding 4 - WD4
95/165/190/330 – 50Hz
110/190/220/380 – 60Hz
Winding 5 - WD5
120/208/240/415 – 50Hz
140/240/280/480 – 60Hz
Winding 6 - WD6
208/360/415/720 – 50Hz
240/415/480 – 60Hz
Winding 7 - WD7
147/255/290/500 – 50Hz
165/290/330/575 – 60Hz
Winding 8 - WD8
230/400/460 – 50Hz
265/460/530 – 60Hz
Winding 9 – WD9
220/380/440 – 50Hz
255/440/510 – 60Hz
Winding 10 - WD10
190/330/380/660– 50Hz
220/380/440– 60Hz
Winding 11 - WD11
240/415/480– 50Hz
280/480/550– 60Hz
Winding 12 - WD12
290/500/575– 50Hz
330/575 – 60Hz
Winding 1 - WD1
115/200/230/400 – 50Hz
132/230/265/460 – 60 Hz
Winding 2 - WD2
200/346/400/690 – 50Hz
230/400/460 – 60Hz
Winding 3 - WD3
110/190/220/380 – 50Hz
127/220/255/440 – 60Hz
Winding 4 - WD4
95/165/190/330 – 50Hz
110/190/220/380 – 60Hz
Winding 5 - WD5
120/208/240/415 – 50Hz
140/240/280/480 – 60Hz
Winding 6 - WD6
208/360/415/720 – 50Hz
240/415/480 – 60Hz
Winding 7 - WD7
147/255/290/500 – 50Hz
165/290/330/575 – 60Hz
Winding 8 - WD8
230/400/460 – 50Hz
265/460/530 – 60Hz
Winding 9 – WD9
220/380/440 – 50Hz
255/440/510 – 60Hz
Winding 10 - WD10
190/330/380/660– 50Hz
220/380/440– 60Hz
Winding 11 - WD11
240/415/480– 50Hz
280/480/550– 60Hz
Winding 12 - WD12
290/500/575– 50Hz
330/575 – 60Hz
Tùy Chọn Phanh
Brake type
Brake supply
Separate brake supply
Up to IP56 protection for brake motors
Manual release hand lever
Release hand lever position
AC/DC rectifier type
Microswitch (release and wear monitoring)
Brake supply
Separate brake supply
Up to IP56 protection for brake motors
Manual release hand lever
Release hand lever position
AC/DC rectifier type
Microswitch (release and wear monitoring)
Tùy chọn động cơ
Protection up to IP56 for standard and non-brake motors
Cable entry position
Metal/plastic fan cover
Modular encoder, brake, and canopy
Thermal protection (thermistors; sensors; switches)
Tropicalization
Anti-condensation heaters
Rain canopies
Rotor balancing
Double extended shaft
Cable entry position
Metal/plastic fan cover
Modular encoder, brake, and canopy
Thermal protection (thermistors; sensors; switches)
Tropicalization
Anti-condensation heaters
Rain canopies
Rotor balancing
Double extended shaft
